Type/Rated Output Power

3KVA/3KW

5KVA/5KW

6KVA/5.1KW

Input Voltage Wave

sine wave (electricity or generator)

Rated input voltage

220Vac

Low-voltage line losses

V 170Vac ±3

Low-voltage line restoration

V 180Vac ±3

High voltage line consumption

V 255Vac ±3

High Voltage Line Restoration

V 245Vac ±3

Maximum AC input voltage

300Vac

Rated input frequency

50Hz /60Hz (automatic detection)

Low frequency loss

47.5±1 Hz

Recovery of low frequency consumption

48±1 Hz

High frequency consumption

52.5±1 Hz

High frequency loss recovery

52±1 Hz

Power factor

>0.98

Output short circuit protection

Electricity Mode: Circuit Breaker        Battery mode: electronic wiring

Efficiency (in electricity mode)

>97%(resistive load and full battery)

Conversion time *

10 ms General

Type/Rated Output Power

3KVA/3KW

5KVA/5KW

6KVA/5.1KW

Output Voltage Wave

sine wave

Output voltage range

220Vac ±5 per cent

Output frequency

50Hz or 60 Hz

Peak efficiency

90%

Overload protection

5 seconds @≥150% load ;1 minute @125%~150% load ;5 minutes @110%~125% load;

Sudden wave capability

2x rated power 5 seconds

Rated DC Input Voltage

48.0 Vdc

Cold start-up voltage

46.0 Vdc

Low DC Warning Voltage

@20%< load

@20%≤ load <50% load

@50%≥ load

44.0 Vdc

42.8 Vdc

40.4 Vdc

Low DC Warning Return Voltage

@20%< load

@20%≤ load <50% load

@50%≥ load

46.0 Vdc

44.8 Vdc

42.4 Vdc

Low DC Disconnect Voltage

@20%< load

@20%≤ load <50% load

@50%≥ load

42.0 Vdc

40.8 Vdc

38.4 Vdc

High DC Recovery Voltage

58Vdc

High DC Disconnect Voltage

60Vdc

No load loss

W <50

Energy saving mode power consumption

W <15

Power charging mode

Type/Rated Output Power

3KVA/3KW

5KVA/5KW

6KVA/5.1KW

Charge current (UPS)

@ Rated input voltage

Set :30 A; Max :60 A

Constant current charging voltage

56.4 Vdc

Floating Charge Voltage

54.0 Vdc

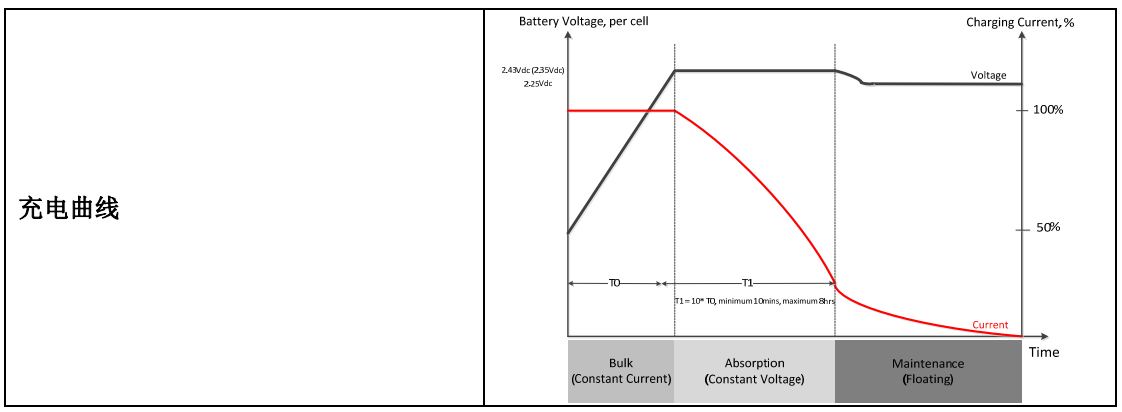

Charging mode

Phase 3

Type/Rated Output Power

3KVA/3KW

5KVA/5KW

6KVA/5.1KW

Parallel capacity

Yes (up to 9 units in parallel)

Communications

RS232 and USB

Safety certification

CE

Operating temperature range

 ℃to 40℃0

Storage temperature

-15℃ ~ 60℃

Humidity

5% to 95% relative humidity (non-condensation)

Dimensions (D*W*H), mm

400×438×86.3

Net weight/kg (KG)

8.7

9.2

9.2
