Summary
STCB maintenance free valve regulated lead-acid battery is the crystallization of experienced more than ten years of continuous innovation. For the NP series battery development the Asian market is ten years accumulated battery production experience of success. Widely praised performance, excellent quality of excellence by users, high energy density, fully sealed structure, long service life, high reliability and good service for customers to provide greater convenience.
Characteristic
Maintenance free without rehydration
To adapt to the environment of wide temperature (-35~45 DEG C)
Long service life
Safety explosion-proof
No free electrolyte, down the side of 90 degrees can be used
Small internal resistance, large current discharge characteristics of a good
Small self discharge
Charged the factory, easy to use
Unique formula, deep discharge good recovery performance
Application: device alarm system, emergency lighting system, electronic equipment, railway, ship, electronic systems, solar energy, wind power generation system, large UPS and computer standby power supply, fire standby power, peak load compensation reservoir
Structure

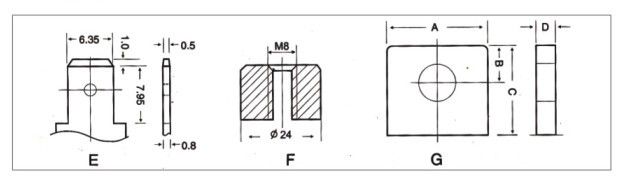

端子尺寸（mm）
端子形状
NP系列规格
|
型号 |
额定电压 |
额定容量25℃（AH） |
尺寸 |
重量 |
端子
|
||||
|
（v） |
20HR 1.75V/CELL |
10HR 1.75V/CELL |
长±1 (mm) |
宽±1 (mm） |
高±2 (mm） |
总高±2 (mm) |
（KG） |
||
|
NP1.2-6 |
6 |
1.2 |
1.1 |
97 |
25 |
52 |
58 |
0.30 |
E |
|
NP4.5-6 |
6 |
4.5 |
4 |
70 |
47 |
102 |
105 |
0.95 |
E |
|
NP8-6 |
6 |
8 |
7.4 |
151 |
50 |
94 |
98 |
1.60 |
E |
|
NP10-6 |
6 |
10 |
9.3 |
151 |
50 |
94 |
98 |
2.00 |
E |
|
NP1.2-12 |
12 |
1.2 |
1.1 |
97 |
48 |
52 |
58 |
0.60 |
E |
|
NP2.0-12 |
12 |
2.0 |
1.9 |
178 |
34 |
60 |
64 |
0.83 |
E |
|
NP4.5-12 |
12 |
4.5 |
4.1 |
90 |
70 |
102 |
105 |
1.80 |
E |
|
NP5-12 |
12 |
5 |
4.6 |
90 |
70 |
102 |
105 |
1.83 |
E |
|
NP7.5-12 |
12 |
7.5 |
7.0 |
151 |
65 |
94 |
98 |
2.65 |
E |
|
NP8-12 |
12 |
8 |
7.5 |
151 |
65 |
94 |
98 |
2.70 |
E |
|
NP12-12 |
12 |
12 |
11.1 |
151 |
98 |
98 |
101 |
4.10 |
E |
|
NP14-12 |
12 |
14 |
13 |
151 |
98 |
98 |
101 |
4.30 |
E |
|
NP17-12 |
12 |
17 |
15.8 |
181 |
76 |
167 |
167 |
6.00 |
G |
|
NP24-12 |
12 |
26 |
24 |
166 |
175 |
125 |
125 |
8.50 |
G |
|
NP24B-12 |
12 |
24 |
22 |
166 |
125 |
175 |
175 |
8.50 |
G |
|
NP30-12 |
12 |
30 |
28 |
166 |
125 |
175 |
175 |
9.60 |
G |
|
NP38-12 |
12 |
41 |
38 |
197 |
165 |
170 |
170 |
13.30 |
G |
|
NP55-12 |
12 |
55 |
51 |
236 |
132 |
205 |
239 |
18.00 |
G |
|
NP65-12 |
12 |
70 |
65 |
350 |
166 |
174 |
174 |
22.70 |
G |
|
NP100-12 |
12 |
100 |
93 |
330 |
170 |
215 |
243 |
31.50 |
G |
|
NP120-12 |
12 |
120 |
110 |
405 |
175 |
210 |
240 |
37.00 |
G |
|
NP150-12 |
12 |
160 |
150 |
480 |
170 |
240 |
240 |
48.00 |
G |
|
NP180-12 |
12 |
200 |
186 |
524 |
240 |
216 |
244 |
60.50 |
G |
|
NP200-12 |
12 |
218 |
200 |
524 |
240 |
216 |
244 |
65.00 |
G |
